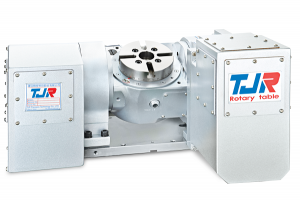

The FAR-Series is TJR’s pneumatic brake tilt cradle type dual arm rotary table line and is offered in multiple sizes and configurations. The FAR models featured here are TJR’s tilt cradle type dual arm rotary tables.
The sizes range from 125mm (4.92”) to 210mm (8.26”) face plate diameter. The FAR-Series is ideal to convert your traditional 3 axis milling machine into a 5 axis machine for a portion of the cost of a new full 5 axis machine. They are capable of being fully integrated into your current machine control so you can utilize as a full rotating and tilting axis for true 5 axis work. It is also capable of being used as a full 4th and 5th axis connecting to TJR’s DAC (Dual Axis Controller) in the event that you need to utilize the unit on multiple machine tools.
The FAR series is manufactured with large-diameter radial-axial preloaded bearing system for high rigidity that can perform light or heavy cutting.
Item/Model | Unit | FAR-125/125B | FAR-170A (compact type) | FAR-170 (Standard type) / FAR-170B (Back side motor type) | ||||
---|---|---|---|---|---|---|---|---|
Table Diameter | mm | Ø 125 | Ø 170 | Ø 170 | ||||
Diameter of Table Central Hole | mm | Ø 35H7 | Ø 67 | Ø 67 | ||||
Inner Diameter of Mandrel Sleeve | mm | – | Ø 40H7 | Ø 40H7 | ||||
Diameter of Center Through Hole | mm | Ø 25 | Ø 40 | Ø 40 | ||||
Table Height (Horizontal) | mm | 215 | 245 | 270 | ||||
Table T-slot Width | mm | 12H7 | 12H7 | 12H7 | ||||
Guide Block Width | mm | 14h7 | 18h7 | 18h7 | ||||
Axis | Rotation | Tilt (-30º ~ +120º) | Rotation | Tilt ±100º | Rotation | Tilt ±100º | ||
Min. Increment | deg. | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | |
Indexing Precision | sec. | 40 | 50 (30, if ECN-225 angle encoder is employed) |
20 | 50 (30, if ECN-225 angle encoder is employed) |
20 | 50 (Angle encoder can not be employed) |
|
Repeatability | sec. | 4 | 8 | 4 | 8 | 4 | 8 | |
Clamping System (Pneumatic) | kg/cm2 | 5 | 6 | 6 | 6 | 6 | 6 | |
Clamping Torque | kg-m | 13 | 31 | 31 | 31 | 31 | 31 | |
Servo Motor Model | FANUC | Taper/Straight shaft | α2i / ß4is | α4i / ß8is | α2i / α4is / ß4is | α4i / ß8is | α4i / ß8is | α8i / α12is / ß12is |
MITSUBISHI | Taper shaft | HF-75 / 105 | HF-54 / 104 | HF-75 / 105 | HF-54 / 104 (Straight shaft is not available) | HF-54 / 104 | HF-104 | |
Speed Reduction Ratio | – | 1:60 | 1:90 | 1:72 | 1:120 | 1:90 | 1:90 | |
Max. Rotation Rate of Table (Calculate with Fanuc α Motor) | r.p.m | 83.3 | 44.4 | 41.6 | 25 | 44.4 | 44.4 | |
Allowable Inertia Load Capacity (Horizontal) | kg.cm.sec2 | 0.97 | 2.2 | 4.13 | ||||
Allowable Workpiece Load | 0º Horizontal | kg | 50 | 60 | 75 | |||
0º~90º Tilt | kg | 35 | 40 | 50 | ||||
Allowable Load(with Rotary Table Clamping) | F | kgf | 400 | 600 | 750 | |||
FxL | kgf.m | 31 | 31 | 31 | ||||
FxL | kgf.m | 13 | 31 | 31 | ||||
Strength of worm gears (Rotary axis) | kg.m | 9 | 18 | 18 | ||||
Net Weight (servo motor excluded) | kg | 97 | 125 | 160 |
>
Item/Model | Unit | FAR-210 (Standard type) | FAR-210B (Back side motor type) | FAR-210L (Extended cradle type) | ||||
---|---|---|---|---|---|---|---|---|
Table Diameter | mm | Ø 210 | Ø 210 | Ø 210 | ||||
Diameter of Table Central Hole | mm | Ø 67 | Ø 67 | Ø 67 | ||||
Inner Diameter of Mandrel Sleeve | mm | Ø 40H7 | Ø 40H7 | Ø 40H7 | ||||
Diameter of Center Through Hole | mm | Ø 40 | Ø 40 | Ø 40 | ||||
Table Height (Horizontal) | mm | 270 | 270 | 270 | ||||
Table T-slot Width | mm | 12H7 | 12H7 | 12H7 | ||||
Guide Block Width | mm | 18h7 | 18h7 | 18h7 | ||||
Axis | Rotation | Tilt ±100º | Rotation | Tilt ±100º | Rotation | Tilt ±100º | ||
Min. Increment | deg. | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | |
Indexing Precision | sec. | 20 | 50 (30, if ECN-225 angle encoder is employed) |
20 | 50 (30, if ECN-225 angle encoder is employed) |
20 | 50 (Angle encoder can not be employed) |
|
Repeatability | sec. | 4 | 8 | 4 | 8 | 4 | 8 | |
Clamping System (Pneumatic) | kg/cm2 | 6 | 6 / Hyd.25 (optional) | 6 | 6 / Hyd.25 (optional) | 6 | 6 / Hyd.25 (optional) | |
Clamping Torque | kg-m | 31 | 31 / Hyd.35 | 31 | 31 / Hyd.35 | 31 | 31 / Hyd.35 | |
Servo Motor Model | FANUC | Taper/Straight shaft | α4i / ß8is | α8i / α12is / ß12is | α4i / ß8is | α8i / α12is / ß12is | α4i / ß8is | α8i / α12is / ß12is |
MITSUBISHI | Taper shaft | HF-54/104 | HF-104 | HF-54/104 | HF-104 | HF-54/104 | HF-104 | |
Speed Reduction Ratio | – | 1:90 | 1:90 | 1:90 | 1:90 | 1:90 | 1:90 | |
Max. Rotation Rate of Table (Calculate with Fanuc α Motor) | r.p.m | 44.4 | 44.4 | 44.4 | 44.4 | 44.4 | 44.4 | |
Allowable Inertia Load Capacity (Horizontal) | kg.cm.sec2 | 41.3 | 41.3 | 41.3 | ||||
Allowable Workpiece Load | 0º Horizontal | kg | 75 | 75 | 75 | |||
0º~90º Tilt | kg | 50 | 50 | 50 | ||||
Allowable Load(with Rotary Table Clamping) | F | kgf | 750 | 750 | 750 | |||
FxL | kgf.m | Pne.31 / Hyd.35 | Pne.31 / Hyd.35 | Pne.31 / Hyd.35 | ||||
FxL | kgf.m | 31 | 31 | 31 | ||||
Strength of worm gears (Rotary axis) | kg.m | 18 | 18 | 18 | ||||
Net Weight (servo motor excluded) | kg | 153 | 163 | 156 |
