ARNO Plus Series — Oil Mist Collector

“Change is in the Air”

Jump to Specs

The ARNO Plus series of oil mist collectors from A.R. Filtrazioni is an excellent choice for the extraction, re-condensation and purification of air from dust, fumes, oil and micro mists generated in dry and wet environments. These air cleaning systems are best used in heavy-duty high-production machining environments that operate up to 3 shifts. This new generation of air filtration systems and mist collectors is best used for the recondensation and purification of every type of atmospheric pollutant generated during the machining process using CNC machine tools and other machine shop equipment.

A.R. Filtrazioni was founded and operates on the Kaizen approach. Through this practice, the company helps manufacturers to create a comprehensively healthy environment for their employees, which in turn improves the well-being of everything. Read more about the Kaizen approach.

Oil Mist Collectors Are Equipped with:

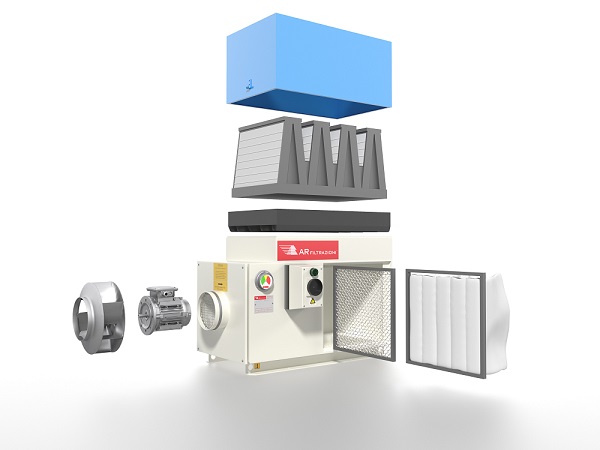

• 5 Stages of Filtration:

1. Self-cleaning Centrifugal Condenser
2. Prefiltration Cell using Galvanized Steel Metal Filter
3. Pocket Filter using Coalescence Filter
4. 2^nd Coalescence Filter
5. HEPA Filter for Final Filtration

• Recondensation of cooling/lubrication fluids with a reduction of 95% of particles with 0.3µ volume
• High quality EPA filter for 95% efficiency + extreme HEPA H13 final filter for 99.995% efficiency of particles ≥ 0.15µ
• Built-in pre-filtration carbon stages collects excessive liquid pollutants
• Filter condition detector
• Analog/digital pressure gauge 4.0
• Motor protection switch
• ISO EN 16890 certified
• Official test certificate with each unit

The ARNO Plus series oil mist collectors are equipped with a motor protection circuit breaker and visual filter clogging detector.  The built-in drainage mechanism allows for the recovery of approximately 80% of air-born condensed liquid.

ARNO Plus Series Advantages

Oil Mist Collectors Best Used With

ARNO Plus Series
