Adding unmanned production capabilities to your CNC lathe is one of the best ways to increase production without increasing labor costs. CNC Indexing & Feeding Technologies offers TRACER short bar loaders in both pneumatic and servo styles to do just that.
Pneumatic Short Bar Loader
The pneumatic style short bar loader is an economical way to achieve unmanned production runs. The V-65E and V-65LE load spindle length bar stock into the lathe spindle and will feed to a turret stop.
These extremely versatile short bar loaders come standard with Top Cut System for automatically sensing a new bar position in the loader and easy to access V Channel Adjustment Guide for quickly changing bar diameters. TRACER pneumatic short bar loaders also come with a unique Rail Retract System that allows an operator to slide the loader back out of the way for easy spindle liner changes and accessibility to the lathe.
The V-65E is able to feed bar diameters from 5 to 65mm (.25″ to 2.56″) and up to 1,200mm (48″) in length. The V-65LE feeds bar diameters from 5 to 65mm and up to 1,500mm (60″) in length.
Servo Short Bar Loaders

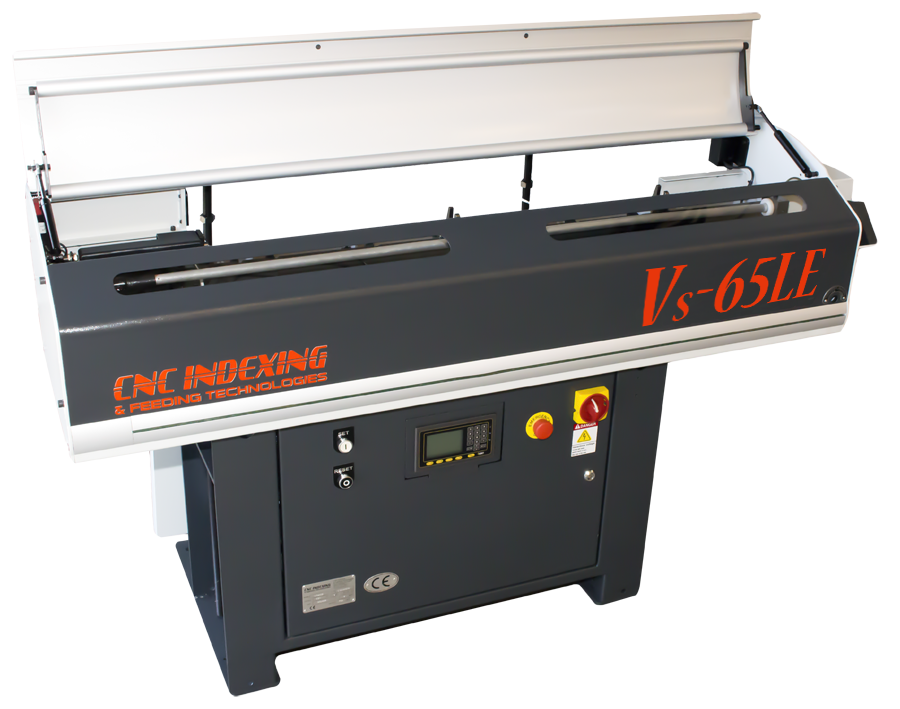

The TRACER Vs-65E and Vs-65LE servo short bar loaders can help you achieve unmanned production runs with sub-spindle style CNC lathes. The TRACER servo short bar loaders can load spindle length bar stock into the lathe’s spindle.
The TRACER Vs-65E, Vs-65LE, Vs-80L and Vs-105XL can feed bar to a turret stop or a pre-set position. These models can handle the following sizes of bar diameter and length:
- Vs-65E: 5 to 65mm (.25″~2.56″) max. bar diameter and 1,200mm (48″) max. bar length
- Vs-65LE: 5 to 65mm (.25″~2.56″) max. bar diameter and 1,500mm (60″) max. bar length
- Vs-80L: 8 to 80mm (.315″ to 3.15″) max. bar diameter and 1,500mm (60″) max. bar length
- Vs-105XL: 5 to 105mm (.20″~4.13″) max. bar diameter and 1,860mm (73″) max. bar length
All TRACER bar feeders and bar loaders come standard with our patented frontal LED Display that allows for distant monitoring at a glance. The LED Display messages provide the operator with important information, including bar length, last bar, feeder error, and CNC lathe error.
Contact CNC Indexing & Feeding Technologies today at 513-770-4200 to learn more about our short bar loaders!
