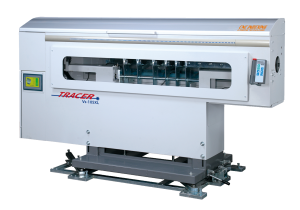

NEW VS-105XL Servo Short Bar Loader
- Designed to handle bar stock up to Ø105mm (4.13”)
- Holds 5 bars at a time 6’ each at maximum bar diameter – up to 220 lbs. each bar
- No manual adjustments needed when changing bar diameter
- Rail retract system allows the bar feeder to move back and away at a 45° angle for convenient spindle liner changes and machine service access
- Patented external LED light bar on the front of the magazine allows visual monitoring of bar status and alarms
- Industry’s easiest to operate HMI touch-screen display with removeable remote control
- Quick change pushers with no tools required – 3 pusher sizes included
- Heavily built – weighing in at 1,540 lbs.
The TRACER Vs-105XL is a heavy bar loader for heavy bars. It can handle up to 4.13″ diameter bars up to 73″ long. The bar feeder’s magazine rack has a maximum capacity of 5 bars at 4.13″ (105mm) diameter. The patented external LED light bar provides a visual status of pusher position, amount of bar remaining, notification of last bar, and flashing notification of machine or bar feeder alarms. This feature is standard on all CNC Indexing short loaders and magazine bar feeders. Our operator-friendly HMI display system is touch screen and contains automatic system settings and a removeable hand-held remote controller for convenience during operation. The quick change pusher is easily changed manually without any tools. No manual adjustments needed when changing bar diameter. The standard rail retract system allows the bar feeder to move back and away from the CNC lathe at a 45° angle for convenient spindle liner changes and access to the machine’s headstock area for ease of maintenance. The Vs-105XL’s PLC control is fully functional with comprehensive data bank software and perfectly interfaces with any CNC lathe.
| Model | TRACER Vs-105XL | |
| Lathe Type | Fixed Headstock | |
| Feeding Direction | Right | |
| Bar Diameter | 5 – 105mm (.20″ – 4.13″) | |
| Bar Length | Max 1,860mm (73″) | |
| Magazine Capacity | 5 bars at 105mm (4.13″) | |
| Pusher Sizes (mm) | 8, 12.7, 19, 22 | |
| Feeding System | Servo | |
| Power Supply | 230V – 60Hz / 3 Phase / 1.5 KVA | |
| Machine Weight | 1,540 lbs. | |
* All TRACER Short Bar Loaders are equipped with a patented TRACER LED external blue light display, on the front of the loader, allowing operators visual monitoring of bar status and alarms.
