- Up to 5’ Length Bars (actual bar length determined by lathe spindle length)
- Bar Diameter capacity of 8mm to 80mm (0.315” – 3.15”)
- Material can be round, hexagonal or square
- Material can be uniform or random in length
- Sub-spindle mode
- Store Up to 100 different job settings with built in memory
- Includes Three Pushers, Sliding Rail System and One Spindle Liner

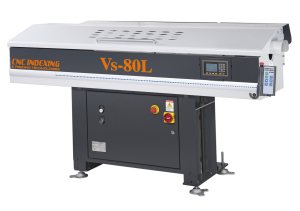

The TRACER Vs-80L is a compact magazine bar loader designed for loading larger diameter bar on CNC lathes. The Vs-80L positions with a servo driven, belt fed, closed loop encoder system. The Vs-80L feeds bar to a stop or a pre-set position. This model is ideal for use on lathes with a sub-spindle. Standard features include x-axis sliding rail system for easy spindle liner removal, large magazine tray to allow for unmanned production, hand held remote control for operator convenience, top-cut system to sense new bar position and easy v-channel adjustment for quick bar diameter changes.
| Model | TRACER Vs-80L (5′) |
| Lathe Type | Fixed Headstock |
| Feeding Direction | Right |
| Bar Diameter | 8 ~ 80mm (.315″ – 3.15″) |
| Bar Length | 1.5M (60″) |
| Magazine Capacity | 7 bars at 80mm (3.15″) |
| Pusher Sizes (mm) | 8, 12, 22 |
| Feeding System | Servo |
| Power Supply | 1 Phase 220V – 60Hz – 615W |
| Machine Weight | 400 kg (882 lbs.) |
* All TRACER Short Bar Loaders are equipped with a patented TRACER LED external blue light display, on the front of the loader, allowing operators visual monitoring of bar status and alarms.
