Economical Pneumatic Short Bar Loaders
- Feeds to Turret Stop
- Up to 4′ and 5’ Length Bars (actual bar length determined by lathe spindle length)
- Bar Diameter capacity of 5mm to 65mm (0.25” – 2.56”)
- Material can be Round, Hexagonal or Square
- Material can be Uniform or Random in Length
- External LED Display for Bar Position and Length Monitoring
- Includes Three Pushers, Sliding Rail System and One Spindle Liner

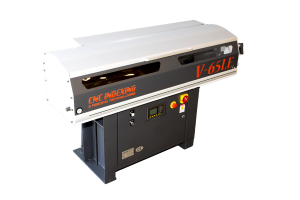

The TRACER V-65E and V-65LE are compact magazine bar loaders designed for CNC lathes. Both short bar loaders pneumatically feed to a turret stop. Standard features include x-axis sliding rail system for easy spindle liner removal, large magazine tray to allow for unmanned production, handheld remote control for operator convenience, top-cut system to sense new bar position and easy v-channel adjustment for bar size changes.
| Model | TRACER V-65E (4′) | TRACER V-65LE (5′) |
| Lathe Type | Fixed Headstock | |
| Feeding Direction | Left or Right | |
| Bar Diameter | 5 – 65mm (.25″ – 2.56″) | |
| Bar Length | Max 1,200mm (48″) | Max 1,500mm (60″) |
| Magazine Capacity | 10 bars at 65mm (2.5″) | |
| Pusher Sizes (mm) | 6, 12, 20 | |
| Feeding System | Pneumatic | |
| Air Pressure | 6 kgf / cm2 (85 psi) | |
| Power Supply | 220V / 440V | |
| Machine Weight | 750 lbs. | 795 lbs. |
* All TRACER Short Bar Loaders are equipped with a patented TRACER LED external blue light display on the front of the loader, allowing operators visual monitoring of bar status and alarms.
